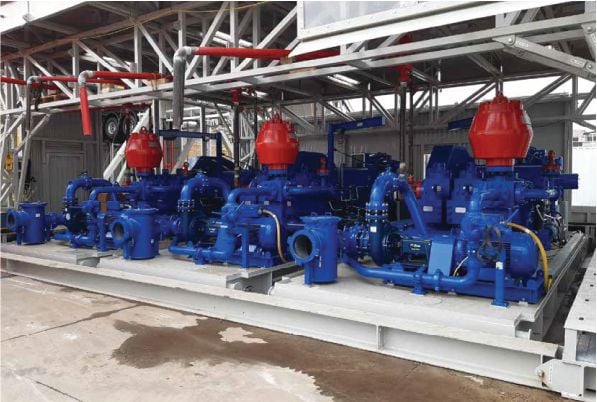

Drillmec Mud Pumps
Item Code: Mud Pumps
Drillmec mud pumps are akin to the heart, they are key equipment in oil and gas drilling that pumps and circulates the drilling mud. As a key player in the manufacture and sales of oilfield equipment, we have a complete range of triplex mud pumps with compact design, reduced carbon emission, and improved performance.
Belt and Chain Transmission Series Gear-Driven Series
This series features robust pumps designed to deliver the highest HSE standards and performance.
- Linear Range of between 114 mm to 184 mm (4 ½ -9 ¼ inches)
- Stroke range of 305 mm (12 inches)
- Maximum pressure of 517 bar (7,500 PSI)
- Maximum volume delivery of 771 gpm (2,922 l/min)
- Ratings range of 1,194 kW (1,600 hp)
- A maximum speed of 120 spm
Gear-Driven Series
This series features low noise and low vibrations, high reliability, and a massive 25% reduction in weight.
- Linear Range of between 114 mm to 229 mm (4-9 inches)
- Stroke range of between 178 mm to 355.5 mm (7 to 14 inches)
- Maximum pressure range of between 207 bar to 517 bar (3,000 to 7,500 PSI)
- Maximum volume delivery range of between 323 gpm to 1,272 gpm (1,226 to 4,815 l/min)
- Rating range of between 336 kW to 1,640 kW (450 to 2,200 hp)
- Maximum speed range of between 110 spm to 150 spm
SPECIFICATIONS
| MUD PUMPS | 7T450 | 7TS600 | 9T1000 | 9T1300 | 12T1600 | 14T2200 | 12T1600GD |
|---|---|---|---|---|---|---|---|
| Liner Range: | 114-140 mm / 4 1/2-5 1/2 in | 102-178 mm / 4 1/2-7 in | 114-178 mm / 4.5-7 in | 114-178 mm / 4.5-7 in | 114-184 mm / 4 1/2-7 1/4 in | 127- 229mm / 5-9 in | 114-184 mm / 4 1/2 - 7 1/4 in |
| Stroke: | 178 mm / 7 in | 178 mm / 7 in | 228 mm / 9 in | 228 mm / 9 in | 305 mm / 12 in | 355.5 mm / 14 in | 305 mm / 12 in |
| Max Pressure: | 207 bar / 3,000 PSI | 345 bar / 5,000 PSI | 345 bar / 5,000 PSI | 345 bar / 5,000 PSI | 345/517 bar / 5,000/7,500 PSI | 517 bar / 7,500 PSI | 517 bar / 7,500 PSI |
| Rating: | 336kW / 450 hp | 447kW / 600 hp | 674kW / 745 hp | 940kW / 1370 hp | 1194kW / 1600 hp | 1640kW / 2200 hp | 1194kW / 1600 hp |
| Max Speed: | 150 Spm | 150 Spm | 150 Spm | 120 Spm | 110 Spm | 120 Spm | |
| Belt & Chain Transmission | Belt & Chain Transmission | Belt & Chain Transmission | Belt & Chain Transmission | Belt & Chain Transmission | Belt & Chain Transmission | Gear Driven |
