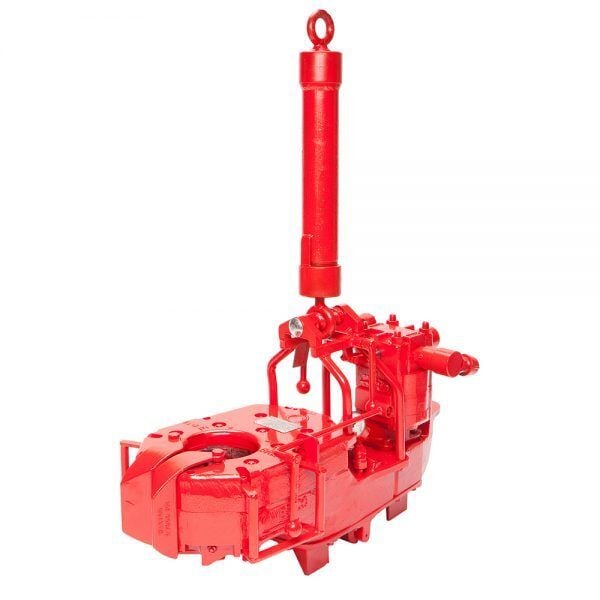

Model M40
Thumbnail

Model M40

Item Code: 9060
  • Model M20 Provides high RPM & low torque for shallow to medium well depths
  • Model M40 Provides medium RPM & torque for medium to deep well depths
  • Model M50 Provides higher torque with low RPM for cost efficient operation

Specifications

SpecificationsM40
Part Number27841-1
Max Torque ft-lbs (Nm)1,620 ft-lbs (2,197 Nm)
Max Speed105

WESTCO ‘s Model M40 Rod Tong features:

  • Reduces Possibility of Cross Threading
  • Insures Proper Makeup & Torque Specifications
  • Eliminates Manual Operation Safety Hazards
  • Lightweight for Easy Handling
  • Hydraulic Requirements – 2,000 PSI @ 30 GPM (137.6 Bar @ 144 LPM)
  • Rod Size – 0.5” (12.7 mm) to 1.125” (28.6 mm)
  • API Pipe Range* – 1.050” (26.7 mm) to 1.900” (48.3 mm)
  • Estimated Weight – 363 lbs. (164.7 kg)
