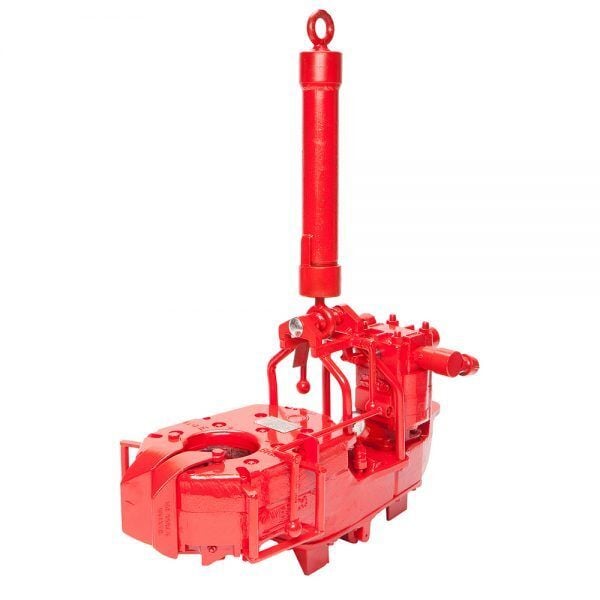

Model M20
Item Code: 9058
- Model M20 Provides high RPM & low torque for shallow to medium well depths
- Model M40 Provides medium RPM & torque for medium to deep well depths
- Model M50 Provides higher torque with low RPM for cost efficient operation
Specifications
| Specifications: | M20 |
|---|---|
| Part Number: | 27841 |
| Max Torque ft-lbs (Nm): | 1,290 ft-lbs(1,750 Nm) |
| Max Speed: | 130 |
WESTCO’s Model M20 Rod Tong Features:
- Reduces Possibility of Cross Threading
- Insures Proper Makeup & Torque Specifications
- Eliminates Manual Operation Safety Hazards
- Lightweight for Easy Handling
- Hydraulic Requirements – 2,000 PSI @ 30 GPM (137.6 Bar @ 144 LPM)
- Rod Size – 0.5” (12.7 mm) to 1.125” (28.6 mm)
- API Pipe Range* – 1.050” (26.7 mm) to 1.900” (48.3 mm)
- Estimated Weight – 363 lbs. (164.7 kg)
