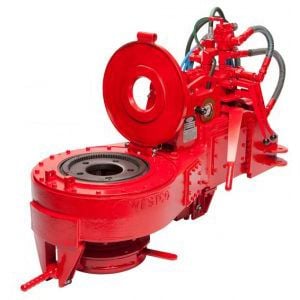

Model 58-93R
Thumbnail
Thumbnail

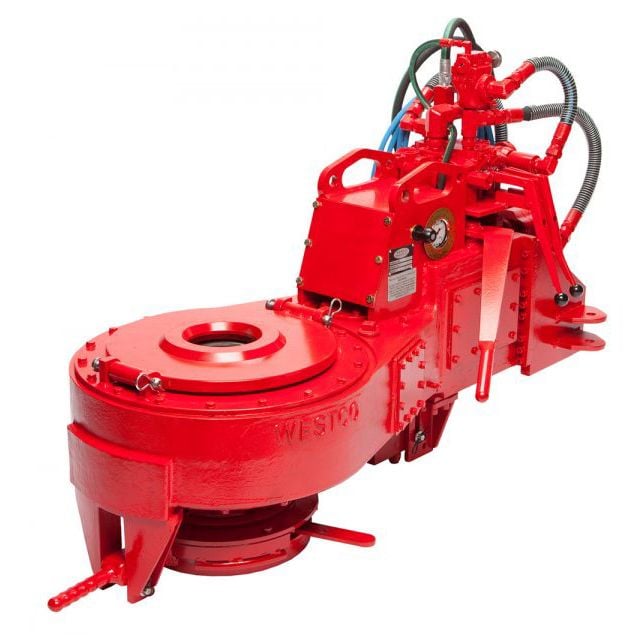

Model 58-93R

Item Code: 9035

Specifications

  • Size Ranges 1-5/16” through 6-1/16” O.D.
  • Tubing 4” through 7” O.D. Casing
  • Torque Range High Gear: 300 to 1,300 ft-lb
  • Low Gear: 6,000 ft-lb
  • RPM High Gear: 126
  • Low Gear: 27
  • Hydraulic Requirement 33 GPM @ 2,000 PSI
  • Tong Length 51”
  • Space Required to Pipe Tong: 9-1/2”
  • With Back-up: 16-1/2”
  • Maximum Elevator Diameter Clearance 30”
  • Estimated Weight 1,000 lbs.

ESTCO’s Closed Head Tubing tong features:

  • Traditional chain-driven, oil-bath lubrication system
  • The familiar five-jaw and jaw carrier gripping system
  • Optional manual, air, or hydraulic back-up
  • Optional hydraulic lift cylinder
  • Optional torque arm (stiff arm)
