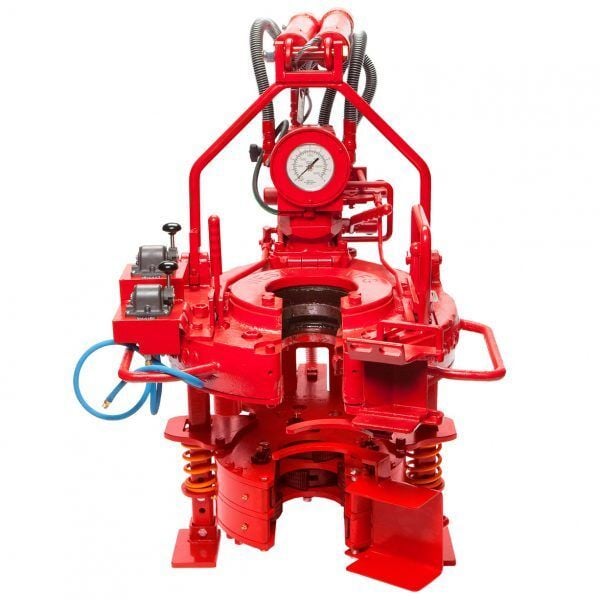

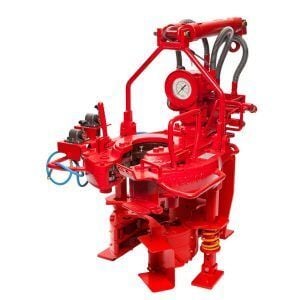

Model 4500
Thumbnail
Thumbnail

Model 4500

Item Code: 9038

Specifications

Maximum RPM35 GPM (132.5 LPM)
Rotation SpeedHigh Gear: 100 RPM
Low Gear: 26 RPM
Make-Up Torque4,650 ft-lbs (642 kg-m) (Low Gear, 2,000 PSI, 140.6 kg/sq. cm)


Dimensions

  • Length: 43” (109.22 cm)
  • Height: 26” (66.04 cm)
  • Weight: 620 lbs. (281.2 kg)
  • Width: 31” (78.74 cm)
  • Arm Length: 29” (73.66 cm)
  • Pipe Size Range 1.05” to 4-3/4” : (26.6 mm to 114.3 mm)
  • Torque ft-lb/Nm : Low Gear @ 250 PSI (172 Bar) 6,670 ft-lbs (9,043 Nm)
  • Rated Speed : High Gear @ 30 GPM (114 LPM) 96 RPM
  • Torque Arm Length : 23” (584 mm) :
  • Nominal Power Requirements : 2,000 PSI (30 GPM)
Back-Up TypeManual M/SPneumatic/Hydraulic
Pipe Size Range1.05” to 4-1/2” (26.6 mm to 114.3 mm)1.05” to 5-9/16” 26.6 mm to 141.3 mm)
Weight53 lbs (24 kg)148 lbs (67.1 kg)

WESTCO’s Model M4500 Gear Drive Tubing Tong features:

  • Safety Lock Front Guard
  • High Torque
  • Light Weight / Easy Handling
  • Low Maintenance Design
  • Proven Durability

Options

  • Torque Load Cell
  • Hydraulic Back-up
  • Pneumatic Back-up
