Model 24-50
Item Code: 9028

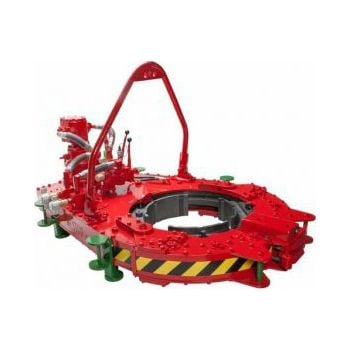

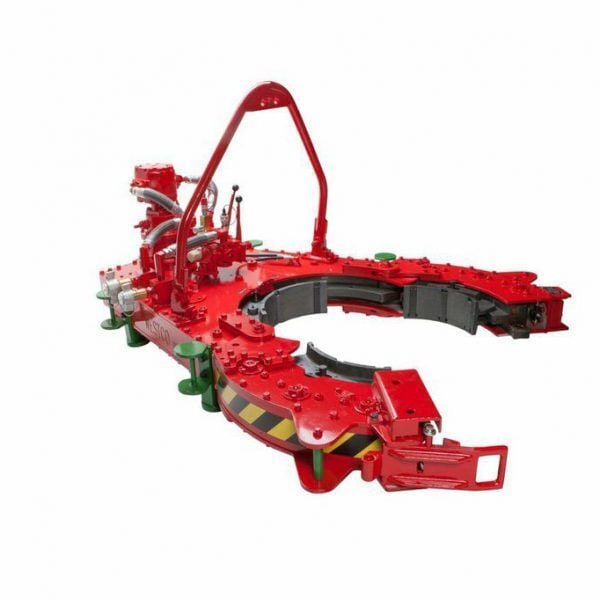

WESTCO’s 24-50 hydraulic casing tong provide 25,000 ft-lb to 50,000 ft-lb of torque capacity for running and pulling 7” to 24” casing. At the heart of this versatile and lightweight tong is a unique gated rotary that completely encircles the casing. This design provides as many as seven contact points which distribute gripping forces over a greater area than conventional tong designs, ensuring a positive grip without damaging the casing.
Specifications
- Pipe Size Range – 7” to 24”
- Rated Torque in Low Gear At 2,000 PSI (138 Bar) – 25,000 ft-lb 33,900 Nm
- Rated Speed in High Gear At 70 GPM (265 LPM) – 93 RPM
- Tong Dimensions – 34” x 54” x 31” (864 mm x 1,356 mm x 782 mm)
- Torque Arm Length – 32” (813 mm)
- Weight – 1,075 lbs. (488 kg)
- Nominal Power Requirement Flow at 1,000 PSI (69 Bar) – 60 to 80 GPM (227 to 303 LPM)
- Nominal Power Requirement Flow at 2,000 PSI (138 Bar) – 30 to 40 GPM (114 to 152 LPM)
