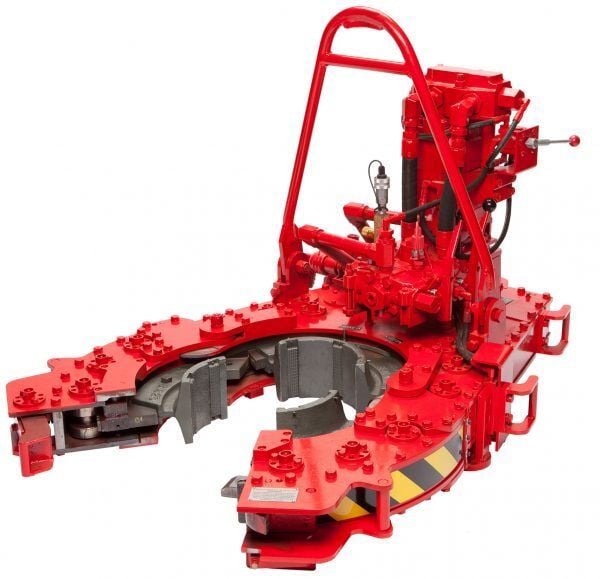

Model 16-25

Item Code: 9024
At the heart of this versatile and lightweight tong is a unique gated rotory that completely encircles the casing. This design provides as many as seven contact points which distribute gripping forces over a greater area than conventional tong designs, ensuring a positive grip without damaging the casing.

WESTCO’s Model 16-25 hydraulic casing tong features:

  • 25,000 ft-lb (33,900 Nm) of torque capacity for running and pulling 5-1/2” to 16” casing

Specifications

  • Pipe Size Range – 5-1/2” to 13-3/8”, 16”
  • Rated Torque in Low Gear At 2,000 PSI (138 Bar) – 25,000 ft-lb 33,900 Nm
  • Rated Speed in High Gear At 70 GPM (265 LPM) – 93 RPM
  • Tong Dimensions – 34” x 54” x 31” (864 mm x 1,356 mm x 782 mm)
  • Torque Arm Length – 32” (813 mm)
  • Weight – 1,075 lbs. (488 kg)
  • Nominal Power Requirement Flow at 1,000 PSI (69 Bar) – 60 to 80 GPM (227 to 303 LPM)
  • Nominal Power Requirement Flow at 2,000 PSI (138 Bar) – 30 to 40 GPM (114 to 152 LPM)
