Wire Packer Cups 4” - 20”
- HSN / HNBR
- EPDM
- Viton
- Aflas
- Other available
- 60-90 Shore

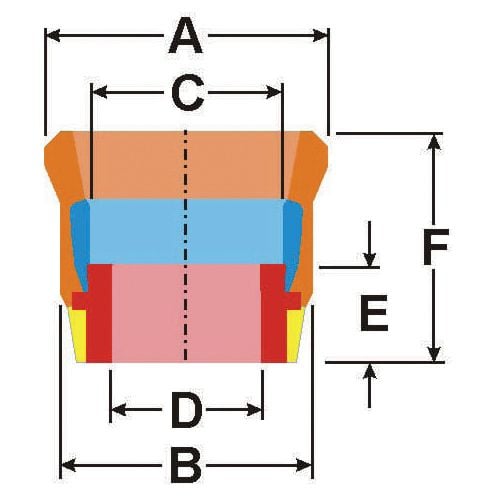

Size | Part No. | Western Silverline Part # | WF/FT | Casing ID | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|
4" | E104001193 | WR-400-1-80 | 9.5-11# | 3.548/3.476 | 3.72 | 3.38 | 2.4 | 1.93 | 1.2 | 3.22 |
E104002193 | WR-400-2-80 | 11# | 3.476 | 3.51 | 3.38 | 2.4 | 1.93 | 1.2 | 3.22 | |
4 1/2" | E104501241 | WR-450-1-80 | 9.5-11.6# | 4.090/4.000 | 4.15 | 3.85 | 2.67 | 2.41 | 1.5 | 4.31 |
E104502241 | WR-450-2-80 | 12.6-13.5# | 3.958/3.920 | 4.08 | 3.74 | 2.74 | 2.41 | 1.5 | 4.34 | |
5" | E105001241 | WR-500-1-80 | 15-18# | 4.408/4.276 | 4.62 | 4.16 | 2.73 | 2.41 | 1.5 | 4.25 |
E105002241 | WR-500-2-80 | 18-21# | 4.276/4.126 | 4.34 | 4.11 | 2.7 | 2.41 | 1.5 | 4.25 | |
5 1/2" | E105501291 | WR-550-1-80 | 14-17# | 5.012/4.892 | 5.2 | 4.75 | 3.42 | 2.91 | 1.48 | 4.95 |
E105502291 | WR-550-2-80 | 15-17# | 4.950/4.892 | 5.12 | 4.82 | 3.42 | 2.91 | 1.41 | 4.95 | |
E105503291 | WR-550-3-80 | 17-23# | 4.892/4.670 | 4.98 | 4.55 | 3.38 | 2.91 | 1.56 | 5 | |
E105504291 | WR-550-4-80 | 17-20# | 4.892/4.778 | 5.09 | 4.65 | 3.42 | 2.91 | 1.53 | 4.95 | |
5 3/4" | E105751291 | WR-575-1-80 | 17-19# | 5.190/5.090 | 5.28 | 4.88 | 3.36 | 2.91 | 1.42 | 4.97 |
6 5/8" | E106581291 |
| 24-28# | 5.920/5.791 | 6.01 | 5.6 | 4.07 | 2.91 | 1.5 | 5.22 |
E106581353 | WR-658-1-80 | 24-28# | 5.920/5.791 | 6.01 | 5.64 | 4.07 | 3.53 | 1.54 | 5.2 | |
E106582291 |
| 32# | 5.675 | 5.83 | 5.63 | 4.07 | 2.91 | 1.54 | 5.2 | |
E106582353 | WR-658-2-80 | 32# | 5.675 | 5.83 | 5.6 | 4.07 | 3.53 | 1.81 | 5.1 | |
E106582403 | WR-658-2L-80 | 32# | 5.675 | 5.83 | 5.63 | 4.07 | 4.031 | 1.54 | 5.2 | |
7" | E107001353 | WR-700-1-80 | 17-20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 3.53 | 1.53 | 5.64 |
E107001291 |
| 17-20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 2.91 | 1.53 | 5.64 | |
E107001403 | WR-700-1L-80 | 17/20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 4.031 | 1.53 | 5.64 | |
E107002291 |
| 17/23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 2.91 | 1.53 | 5.64 | |
E107002353 | WR-700-2-80 | 17-23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 3.53 | 1.63 | 5.7 | |
E107002403 | WR-700-2L-80 | 17/23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 4.031 | 1.53 | 5.64 | |
E107003291 |
| 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 2.91 | 1.5 | 5.56 | |
E107003353 | WR-700-3-80 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 3.53 | 1.5 | 5.56 | |
E107003403 | WR-700-3L-80 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 4.031 | 1.5 | 5.56 | |
E107004291 |
| 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 2.91 | 1.5 | 5.7 | |
E107004403 | WR-700-4L-80 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 4.031 | 1.5 | 5.7 | |
E107004353 | WR-700-4-80 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 3.53 | 1.5 | 5.7 | |
E107005291 |
| 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 2.91 | 1.57 | 5.7 | |
E107005353 | WR-700-5-80 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 3.53 | 1.57 | 5.7 | |
E107005403 | 38 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 4.031 | 1.57 | 5.7 | |
E107007291 |
| 32# | 6.094 | 6.2 | 5.88 | 4.43 | 2.91 | 1.44 | 5.74 | |
E107007353 | WR-700-7-80 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 3.53 | 1.44 | 5.74 | |
E107007403 | WR-700-7L-80 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 4.031 | 1.44 | 5.7 | |
7 5/8" | E107581291 |
| 24/26# | 7.025/6.969 | 7.25 | 6.8 | 4.61 | 2.91 | 2.04 | 5.65 |
E107581353 | WR-758-1-80 | 24/26# | 7.025/6.969 | 7.25 | 6.8 | 4.61 | 3.53 | 2.04 | 5.65 | |
E107581403 | WR-758-1L-80 | 24/26# | 7.025/6.969 | 7.25 | 6.8 | 4.61 | 4.031 | 2.04 | 5.65 | |
E107582291 |
| 29.7-33.7# | 6.875/6.765 | 6.92 | 6.71 | 4.1 | 2.91 | 1.46 | 5.65 | |
E107582353 | WR-758-2-80 | 29.7-33.7# | 6.875/6.765 | 6.92 | 6.71 | 4.1 | 3.53 | 1.46 | 5.65 | |
E107582403 | WR-758-2L-80 | 29.7-33.7# | 6.875/6.765 | 6.92 | 6.71 | 4.1 | 4.031 | 1.46 | 5.65 | |
E107583291 |
| 39# | 6.625 | 6.72 | 6.51 | 4.1 | 2.91 | 1.46 | 5.65 | |
E107583353 | WR-758-3-80 | 39# | 6.625 | 6.72 | 6.51 | 4.1 | 3.53 | 1.46 | 5.65 | |
E107583403 | WR-758-3L-80 | 39# | 6.625 | 6.72 | 6.51 | 4.1 | 4.031 | 1.46 | 5.65 | |
8 5/8" | E108581353 | WR-858-1-80 | 20-24# | 8.191/8.097 | 8.26 | 7.82 | 5.14 | 3.53 | 1.6 | 5.56 |
E108581453 | WR-858-1L-80 | 20-24# | 8.191/8.097 | 8.26 | 7.82 | 5.14 | 4.53 | 1.6 | 5.56 | |
E108582353 | WR-858-2-80 | 28-36# | 8.017/7.825 | 8.15 | 7.65 | 5.17 | 3.53 | 1.6 | 5.68 | |
E108582453 | WR-858-2L-80 | 28-36# | 8.017/7.825 | 8.15 | 7.65 | 5.17 | 4.53 | 1.6 | 5.68 | |
9 5/8" | E109581353 | WR-958-1-80 | 36-43# | 8.921/8.755 | 9.05 | 8.57 | 5.06 | 3.53 | 1.6 | 6 |
E109581453 | WR-958-1L-80 | 36-43# | 8.921/8.755 | 9.05 | 8.57 | 5.06 | 4.53 | 1.6 | 6 | |
E109582353 | WR-958-2-80 | 47/53# | 8.681/8.535 | 8.85 | 8.31 | 5.85 | 3.53 | 1.56 | 5.98 | |
E109582453 | WR-958-2L-80 | 47/53# | 8.681/8.535 | 8.85 | 8.31 | 5.85 | 4.53 | 1.571 | 6.526 | |
E109583353 | WR-958-3-80 | 40/47# | 8.835/8.681 | 8.9 | 8.54 | 5.03 | 3.53 | 1.6 | 6 | |
E109583453 | WR-958-3L-80 | 40/47# | 8.835/8.681 | 8.9 | 8.54 | 5.03 | 4.53 | 1.6 | 6 | |
E109584353 | WR-958-4-80 | 29.3/36# | 9.063/8.921 | 9.21 | 8.69 | 5.02 | 3.53 | 1.6 | 6 | |
E109584453 | WR-958-4L-80 | 29.3/36# | 9.063/8.921 | 9.21 | 8.69 | 5.02 | 4.53 | 1.6 | 6 | |
10 3/4" | E110751453 | WR-1034-1L-80 | 32.7-55.5# | 10.192/9.760 | 10.2 | 9.7 | 5.88 | 3.53/4.53 | 1.58 | 6.87 |
11 3/4" | E111751453 | WR-1175-1L-80 | 38-54# | 11.150/10.880 | 11.23 | 10.45 | 6.12 | 4.53/3.53 | 1.65 | 6.94 |
13 3/8" | E113381453 | WR-1338-1L-80 | 54.5-72# | 12.615/12.347 | 12.71 | 12.22 | 6 | 4.53 | 1.72 | 7.65 |
Note: 15” - 20” cups available upon request
