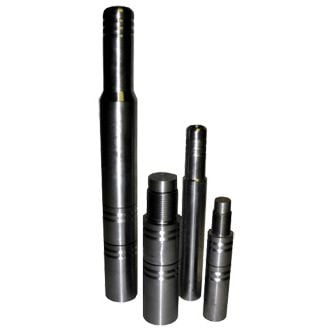

Rope Socket
Item Code: 8663
General Petroleum Oil Tools Rope Sockets provide a strong, and simple connection between the wire line, and the sinker bars. The swivel permits the swab to turn freely under load and the body is provided with fishing neck grooves.
| Part Number | Description | O.D. (inches) | Line Size (inches) | Bottom Connection | Fish Neck O.D. (inches) | O.D. (mm) | Fish Neck O.D. (mm) |
| RS153412 | Rope Socket and Swivel Assembly | 1-1/2″ | 1/2″ | 3/4″ S.R. Box | 1.125″ | 38.10 | 28.575 |
| RS153496 | Rope Socket and Swivel Assembly | 1-1/2″ | 9/16″ | 3/4″ S.R. Box | 1.125″ | 38.10 | 28.575 |
| RS153400 | Swivel Sub | 1-1/2″ | 3/4″ S.R. Box | 38.10 | |||
| RS155800 | Swivel Sub | 1-1/2″ | 5/8″ S.R. Box | 38.10 | |||
| SS115800 | Swivel Sub | 1-1/4″ | 5/8″ S.R. Box | 31.75 | |||
| SS115812 | Rope Socket and Swivel Assembly | 1-3/16″ | 1/2″ | 5/8″ S.R. Box | 1.125″ | 30.16 | |
| SS115896 | Rope Socket and Swivel Assembly | 1-3/16″ | 9/16″ | 5/8″ S.R. Box | 1.125″ | 30.16 | |
| SS173412 | Rope Socket and Swivel Assembly | 1-3/4″ | 1/2″ | 3/4″ S.R. Box | 1.375″ | 44.45 | 34.925 |
| SS173458 | Rope Socket and Swivel Assembly | 1-3/4″ | 5/8″ | 3/4″ S.R. Box | 1.375″ | 44.45 | |
| SS170076 | Rope Socket and Swivel Assembly | 1-3/4″ | 7/16″ | 3/4″ S.R. Box | 1.375″ | 44.45 | |
| SS173496 | Rope Socket and Swivel Assembly | 1-3/4″ | 9/16″ | 3/4″ S.R. Box | 1.375″ | 44.45 | 34.925 |
| SS173400 | Swivel Sub | 1-3/4″ | 3/4″ S.R. Box | 44.45 | |||
| SS175800 | Swivel Sub | 1-3/4″ | 5/8″ S.R. Box | 44.45 | |||
| SS170012 | Body (Top) | 1-3/4″ | 1/2″ | 1.375″ | 44.45 | 34.925 | |
| SS170058 | Body (Top) | 1-3/4″ | 5/8″ | 1.375″ | 44.45 | 34.925 | |
| SS170076FN | Body (Top) | 1-3/4″ | 7/16″ | 1.375″ | 44.45 | 34.925 | |
| SS170096 | Body (Top) | 1-3/4″ | 9/16″ | 1.375″ | 44.45 | 34.925 | |
| SS135812 | Rope Socket and Swivel Assembly | 1-3/8″ | 1/2″ | 5/8″ S.R. Box | 1.188″ | 34.93 | 30.175 |
| SS133412 | Rope Socket and Swivel Assembly | 1-3/8″ | 1/2″ | 3/4″ S.R. Box | 1.188″ | 34.93 | 30.175 |
| SS135896 | Rope Socket and Swivel Assembly | 1-3/8″ | 9/16″ | 5/8″ S.R. Box | 1.188″ | 34.93 | 30.175 |
| SS133496 | Rope Socket and Swivel Assembly | 1-3/8″ | 9/16″ | 3/4″ S.R. Box | 1.188″ | 34.93 | 30.175 |
| SS130012 | Body (Top) | 1-3/8″ | 1/2″ | 1.188″ | 34.93 | 30.175 | |
| SS130096 | Body (Top) | 1-3/8″ | 9/16″ | 1.188″ | 34.93 | 30.175 | |
| SS133400 | Swivel Sub | 1-3/8″ | 3/4″ S.R. Box | 34.93 | |||
| SS135800 | Swivel Sub | 1-3/8″ | 5/8″ S.R. Box | 34.93 |
