Heavy Duty Packer Cups 3-1/2” - 7”
- HSN / HNBR
- EPDM
- Viton
- Aflas
- Other available
- 60-90 Shore

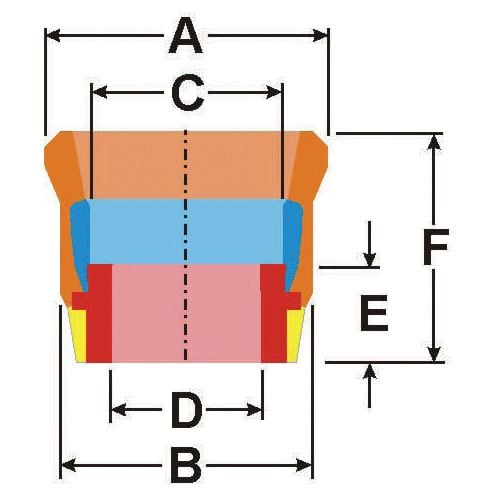

Size | Part No. | Western Silverline Part # | WF/FT | Casing ID | A | B | C | D | E | F |
---|---|---|---|---|---|---|---|---|---|---|
4 1/2" | E104501241 | HD-450-1-8 | 9.5-11.6# | 4.090/4.000 | 4.15 | 3.85 | 2.67 | 2.41 | 1.5 | 4.31 |
E104502241 | HD-450-2-8 | 12.6-13.5# | 3.958/3.920 | 4.08 | 3.74 | 2.74 | 2.41 | 1.5 | 4.34 | |
5" | E105001241 | HD-500-1-8 | 15-18# | 4.408/4.276 | 4.62 | 4.16 | 2.73 | 2.41 | 1.5 | 4.25 |
E105002241 | HD-500-2-8 | 18-21# | 4.276/4.126 | 4.34 | 4.11 | 2.7 | 2.41 | 1.5 | 4.25 | |
5 1/2" | E105501291 | HD-550-1-8 | 14-17# | 5.012/4.892 | 5.2 | 4.75 | 3.42 | 2.91 | 1.48 | 4.95 |
E105502291 | HD-550-2-8 | 15-17# | 4.950/4.892 | 5.12 | 4.82 | 3.42 | 2.91 | 1.41 | 4.95 | |
E105503291 | HD-550-3-8 | 17-23# | 4.892/4.670 | 4.98 | 4.55 | 3.38 | 2.91 | 1.56 | 5 | |
E105504291 | HD-550-4-8 | 17-20# | 4.892/4.778 | 5.09 | 4.65 | 3.42 | 2.91 | 1.53 | 4.95 | |
5 3/4" | E105751291 |
| 17-19# | 5.190/5.090 | 5.28 | 4.88 | 3.36 | 2.91 | 1.42 | 4.97 |
7" | E107001353 | HD-700-1-8 | 17-20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 3.53 | 1.53 | 5.64 |
E107001291 |
| 17-20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 2.91 | 1.53 | 5.64 | |
E107001403 | HD-700-1L-8 | 17/20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 4.031 | 1.53 | 5.64 | |
E107002291 |
| 17/23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 2.91 | 1.53 | 5.64 | |
E107002353 | HD-700-2-8 | 17-23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 3.53 | 1.63 | 5.7 | |
E107002403 | HD-700-2L-8 | 17/23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 4.031 | 1.53 | 5.64 | |
E107003291 |
| 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 2.91 | 1.5 | 5.56 | |
E107003353 | HD-700-3-8 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 3.53 | 1.5 | 5.56 | |
E107003403 | HD-700-3L-8 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 4.031 | 1.5 | 5.56 | |
E107004291 |
| 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 2.91 | 1.5 | 5.7 | |
E107004403 | HD-700-4L-8 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 4.031 | 1.5 | 5.7 | |
E107004353 | HD-700-4-8 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 3.53 | 1.5 | 5.7 | |
E107005291 |
| 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 2.91 | 1.57 | 5.7 | |
E107005353 | HD-700-5-8 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 3.53 | 1.57 | 5.7 | |
E107005403 | HD-700-5L-8 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 4.031 | 1.57 | 5.7 | |
E107007291 |
| 32# | 6.094 | 6.2 | 5.88 | 4.43 | 2.91 | 1.44 | 5.74 | |
E107007353 | HD-700-7-8 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 3.53 | 1.44 | 5.74 | |
E107007403 | HD-700-7L-8 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 4.031 | 1.44 | 5.74 |
