All Rubber Packer Cups 3-1/2” - 26”
Item Code: 8697
Material:
- HSN / HNBR
- EPDM
- Viton
- Aflas
- Other available
- 60-90 Shore

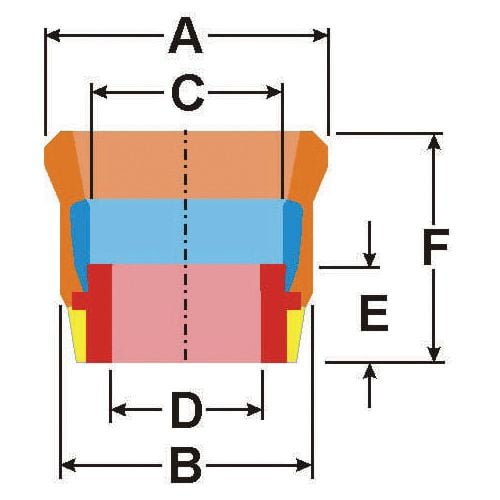

| Size | OEM Part # Part No. | Western Silverline Part # | WF/FT | Casing ID | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 1/2" | E103501134 | 9.2-9.3# | 2.99 | 3.05 | 2.94 | 1.66 | 1.34 | 1.25 | 2.75 | |
| E103501193 | AR-350-1-8 | 9.2-9.3# | 2.99 | 3.05 | 2.94 | 2.28/2.30 | 1.93 | 1.32 | 2.25/3.60 | |
| 4" | E104001193 | 9.5-11# | 3.548/3.476 | 3.72 | 3.38 | 2.4 | 1.93 | 1.2 | 3.22 | |
| E104002193 | 11# | 3.476 | 3.51 | 3.38 | 2.4 | 1.93 | 1.2 | 3.22 | ||
| 4-1/2" | E104502241 | 12.6-13.5# | 3.958/3.920 | 4.08 | 3.74 | 2.74 | 2.41 | 1.5 | 4.34 | |
| 5" | E105001241 | 15-18# | 4.408/4.276 | 4.62 | 4.16 | 2.73 | 2.41 | 1.5 | 4.25 | |
| E105002241 | 18-21# | 4.276/4.126 | 4.34 | 4.11 | 2.7 | 2.41 | 1.5 | 4.25 | ||
| 5 1/2" | E10550291 | 14-17# | 5.012/4.892 | 5.2 | 4.75 | 3.42 | 2.91 | 1.48 | 4.95 | |
| E105502291 | 15-17# | 4.950/4.892 | 5.12 | 4.82 | 3.42 | 2.91 | 1.41 | 4.95 | ||
| E105503291 | 17-23# | 4.892/4.670 | 4.98 | 4.55 | 3.38 | 2.91 | 1.56 | 5 | ||
| E105504291 | 17-20# | 4.892/4.778 | 5.09 | 4.65 | 3.42 | 2.91 | 1.53 | 4.95 | ||
| 5 3/4" | E105751291 | 17-19# | 5.190/5.090 | 5.28 | 4.88 | 3.36 | 2.91 | 1.42 | 4.97 | |
| 6 5/8" | E106581291 | 24-28# | 5.920/5.791 | 6.01 | 5.6 | 4.07 | 2.91 | 1.5 | 5.22 | |
| E106581353 | 24-28# | 5.920/5.791 | 6.01 | 5.64 | 4.07 | 3.53 | 1.54 | 5.2 | ||
| E106582291 | 32# | 5.675 | 5.83 | 5.63 | 4.07 | 2.91 | 1.54 | 5.2 | ||
| E106582353 | 32# | 5.675 | 5.83 | 5.6 | 4.07 | 3.53 | 1.81 | 5.1 | ||
| E106582403 | 32# | 5.675 | 5.83 | 5.63 | 4.07 | 4.031 | 1.54 | 5.2 | ||
| 7" | E107001353 | 17-20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 3.53 | 1.53 | 5.64 | |
| E107001291 | 17-20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 2.91 | 1.53 | 5.64 | ||
| E107001403 | 17/20# | 6.538/6.456 | 6.62 | 6.23 | 4.08 | 4.031 | 1.53 | 5.64 | ||
| E107002291 | 17/23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 2.91 | 1.53 | 5.64 | ||
| E107002353 | 17-23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 3.53 | 1.63 | 5.7 | ||
| E107002403 | 17/23# | 6.538/6.366 | 6.62 | 6.23 | 4.08 | 4.031 | 1.53 | 5.64 | ||
| E107003291 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 2.91 | 1.5 | 5.56 | ||
| E107003353 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 3.53 | 1.5 | 5.56 | ||
| E107003403 | 22-24# | 6.398/6.336 | 6.59 | 6.19 | 4.1 | 4.031 | 1.5 | 5.56 | ||
| E107004291 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 2.91 | 1.5 | 5.7 | ||
| E107004403 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 4.031 | 1.5 | 5.7 | ||
| E107004353 | 22-26# | 6.398/6.276 | 6.46 | 6.15 | 4.08 | 3.53 | 1.5 | 5.7 | ||
| E107005291 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 2.91 | 1.57 | 5.7 | ||
| E107005353 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 3.53 | 1.57 | 5.7 | ||
| E107005403 | 26-30# | 6.276/6.154 | 6.38 | 6.01 | 4.13 | 4.031 | 1.57 | 5.7 | ||
| E107007291 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 2.91 | 1.44 | 5.74 | ||
| E107007353 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 3.53 | 1.44 | 5.74 | ||
| E107007403 | 32# | 6.094 | 6.2 | 5.88 | 4.43 | 4.031 | 1.44 | 5.74 | ||
| 7 5/8" | E107581291 | 24/26# | 7.025/6.969 | 7.25 | 6.8 | 4.61 | 2.91 | 2.04 | 5.65 | |
| E107581353 | 24/26# | 7.025/6.969 | 7.25 | 6.8 | 4.61 | 3.53 | 2.04 | 5.65 | ||
| E107581403 | 24/26# | 7.025/6.969 | 7.25 | 6.8 | 4.61 | 4.031 | 2.04 | 5.65 | ||
| E107582291 | 29.7-33.7# | 6.875/6.765 | 6.92 | 6.71 | 4.1 | 2.91 | 1.46 | 5.65 | ||
| E107582353 | 29.7-33.7# | 6.875/6.765 | 6.92 | 6.71 | 4.1 | 3.53 | 1.46 | 5.65 | ||
| E107582403 | 29.7-33.7# | 6.875/6.765 | 6.92 | 6.71 | 4.1 | 4.031 | 1.46 | 5.65 | ||
| E107583291 | 39# | 6.625 | 6.72 | 6.51 | 4.1 | 2.91 | 1.46 | 5.65 | ||
| E107583353 | 39# | 6.625 | 6.72 | 6.51 | 4.1 | 3.53 | 1.46 | 5.65 | ||
| E107583403 | 39# | 6.625 | 6.72 | 6.51 | 4.1 | 4.031 | 1.46 | 5.65 | ||
| 8 5/8" | E108581353 | 20-24# | 8.191/8.097 | 8.26 | 7.82 | 5.14 | 3.53 | 1.6 | 5.56 | |
| E108581453 | 20-24# | 8.191/8.097 | 8.26 | 7.82 | 5.14 | 4.53 | 1.6 | 5.56 | ||
| E108582353 | 28-36# | 8.017/7.825 | 8.15 | 7.65 | 5.17 | 3.53 | 1.6 | 5.68 | ||
| E108582453 | 28-36# | 8.017/7.825 | 8.15 | 7.65 | 5.17 | 4.53 | 1.6 | 5.68 | ||
| 9 5/8" | E109581353 | 36-43# | 8.921/8.755 | 9.05 | 8.57 | 5.06 | 3.53 | 1.6 | 6 | |
| E109581453 | 36-43# | 8.921/8.755 | 9.05 | 8.57 | 5.06 | 4.53 | 1.6 | 6 | ||
| E109582353 | 47/53# | 8.681/8.535 | 8.85 | 8.31 | 5.85 | 3.53 | 1.56 | 5.98 | ||
| E109582453 | 47/53# | 8.681/8.535 | 8.85 | 8.31 | 5.85 | 4.53 | 1.571 | 6.526 | ||
| E109583353 | 40/47# | 8.835/8.681 | 8.9 | 8.54 | 5.03 | 3.53 | 1.6 | 6 | ||
| E109583453 | 40/47# | 8.835/8.681 | 8.9 | 8.54 | 5.03 | 4.53 | 1.6 | 6 | ||
| E109584353 | 29.3/36# | 9.063/8.921 | 9.21 | 8.69 | 5.02 | 3.53 | 1.6 | 6 | ||
| E109584453 | 29.3/36# | 9.063/8.921 | 9.21 | 8.69 | 5.02 | 4.53 | 1.6 | 6 | ||
| 10 3/4" | E110751453 | 32.7-55.5# | 10.192/9.760 | 10.2 | 9.7 | 5.88 | 3.53/4.53 | 1.58 | 6.87 | |
| E11075173453 | 60.7-73# | 9.660/9.406 | 9.72 | 9.25 | 5.98 | 3.53/4.53 | 1.56 | 6.81 | ||
| 11 3/4" | E111751453 | 38-54# | 11.150/10.880 | 11.23 | 10.45 | 6.12 | 4.53/3.53 | 1.65 | 6.94 | |
| 13 3/8" | E113381453 | 54.5-72# | 12.615/12.347 | 12.71 | 12.22 | 6 | 4.53 | 1.72 | 7.65 | |
| 16" | E11665453 | 65# | 15.25 | 15.4 | 14.5 | 8.3 | 4.53 | 2.3 | 6 | |
| E11675453 | 75# | 15.124 | 15.28 | 14.5 | 8.3 | 4.53 | 2.3 | 6 | ||
| E11684453 | 84# | 15.01 | 15.16 | 14.5 | 8.3 | 4.53 | 2.3 | 6 | ||
| E116109453 | 109# | 14.688 | 14.78 | 14.25 | 8.3 | 4.53 | 2.3 | - | ||
| E116146453 | 146# | 14.188 | 14.13 | 13.88 | 8.3 | 4.53 | 2.3 | - | ||
| 18 5/8" | E11858875453 | 87.5# | 17.755 | 17.9 | 16.4 | 8.22 | 4.53 | 2.5 | 8.85 | |
| E1185894453 | 94# | 17.689 | 17.83 | 16.4 | 8.22 | 4.53 | 2.5 | 8.85 | ||
| 20" | E12094453 | 94# | 19.124 | 19.25 | 18.25 | 9.58 | 4.53 | 2.5 | 8.88 | |
| E120133453 | 133# | 18.73 | 18.87 | 18.24 | 7.5 | 4.53 | 2.5 | 8 | ||
| 22" | E1221437032 | 143# | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | |
| 24" | E12424564453 | 245.64# | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | |
| 26" | E126267453 | 267# | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | |
| E1262677032 | 267# | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec | Per Spec |
