Model CHD

Item Code: 9069

Specifications

SpecificationsModel CHD
Slip Body Assembly, 3-1/2” Nom. Slip Insert Set, 3-1/2” Nom.1.315” (33.4 mm)
1.660” (42.1 mm)
1.900” (48.2 mm)
2.060” (52.3 mm)
2-3/8” (60.0 mm)
2-7/8” (73.0 mm)
3-1/8” (79.2 mm)
3-1/2” (89.0 mm)
Slip Body Assembly, 4-1/2” Nom. Slip Insert Set, 4-1/2” Nom.3-1/2” (88.9 mm)
4” (101.6 mm)
4-1/2” (114.3 mm)
Solid Slip Body Assembly4-3/4” (120.7 mm)
5” (127.0 mm)
5-1/2” (139.7 mm)

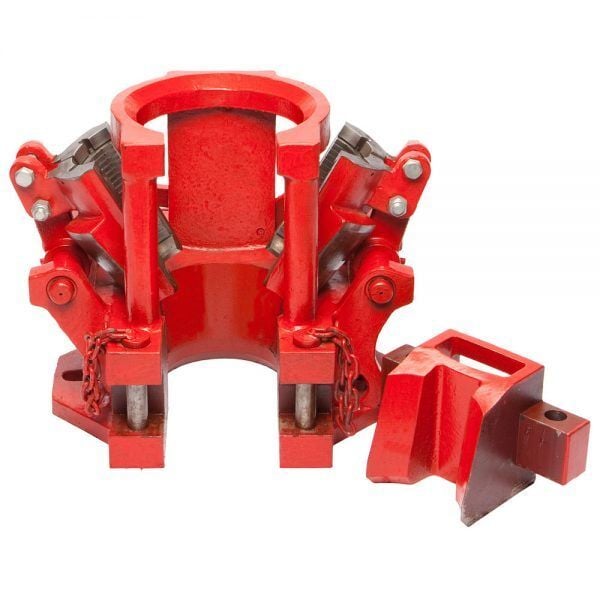

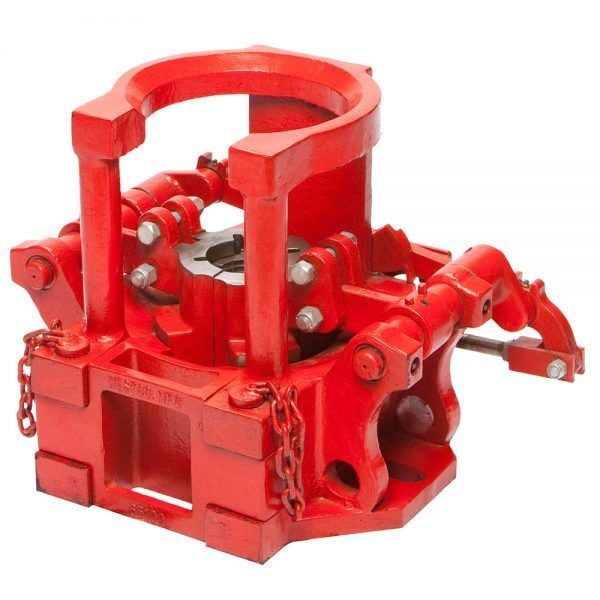

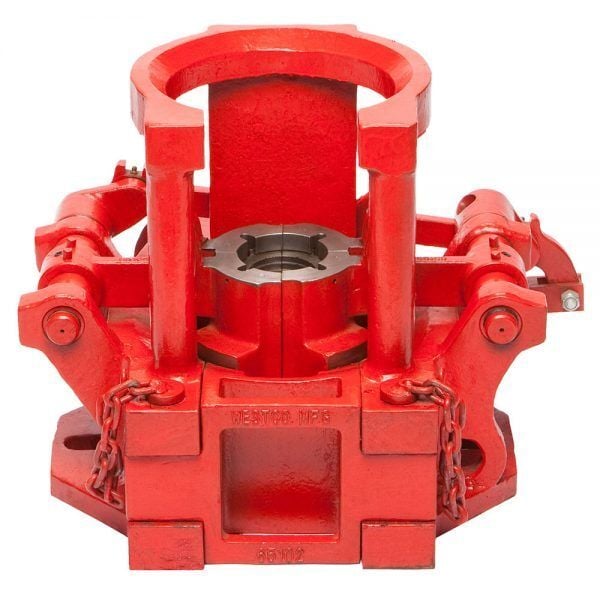

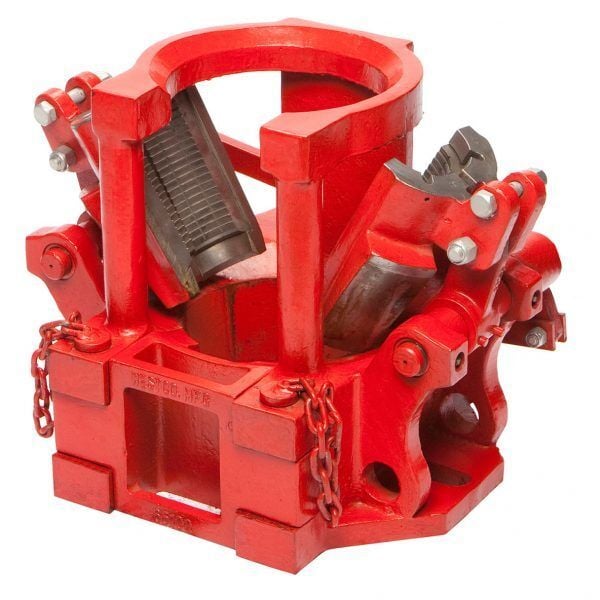

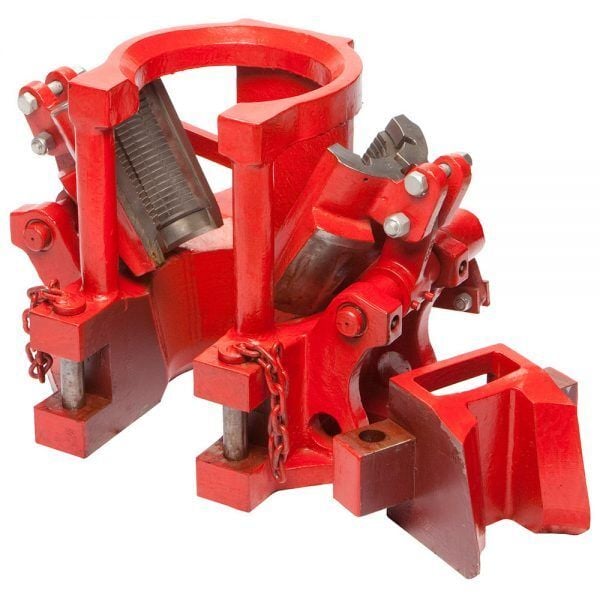

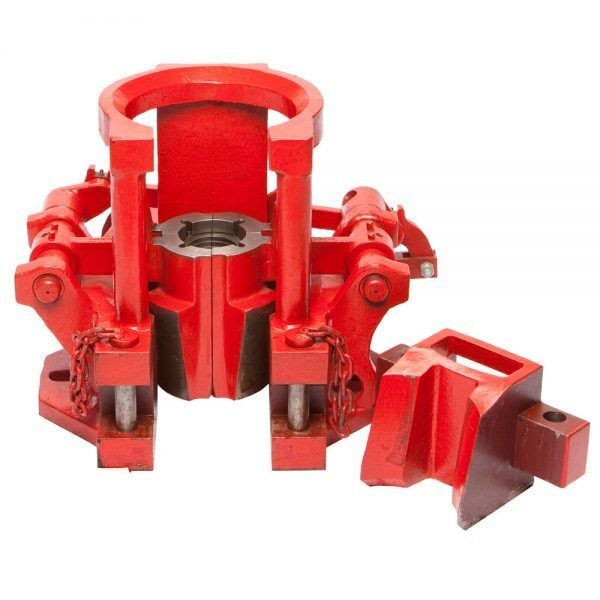

WESTCO’s Model CHD spider features:

  • Hydraulic or Pneumatic Operation
  • 360° Inserts
  • Removable Gate
  • Single String Application
  • Capacity – 250,000 lbs. (125 tons) 113,379 kg
  • Estimated Weight – 457 lbs. (207.3 kg)
