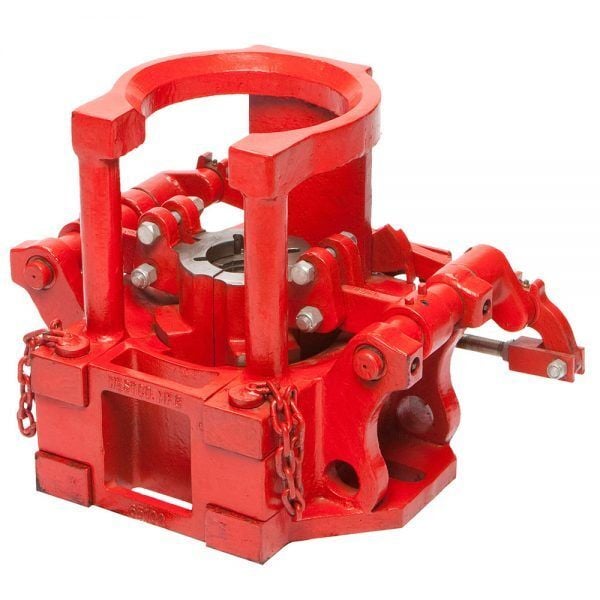

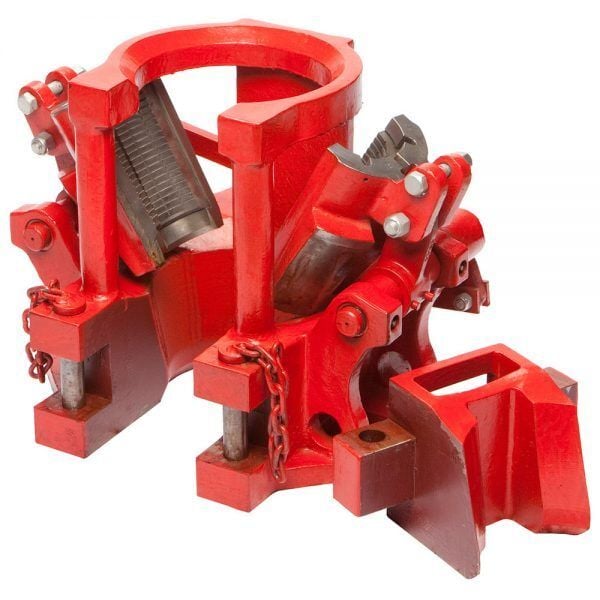

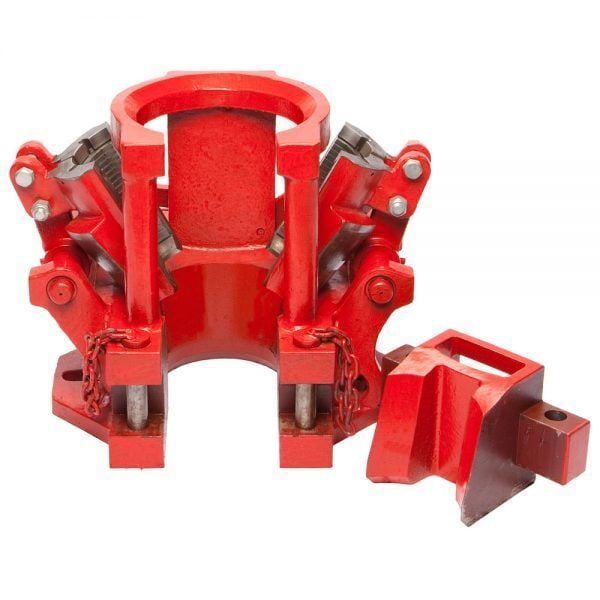

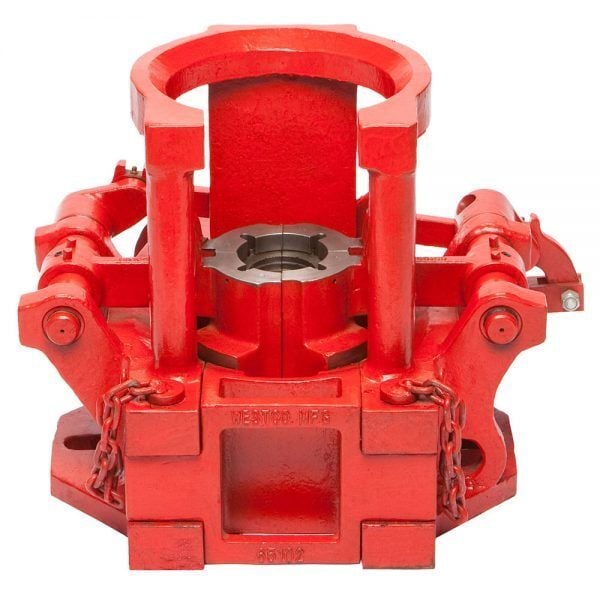

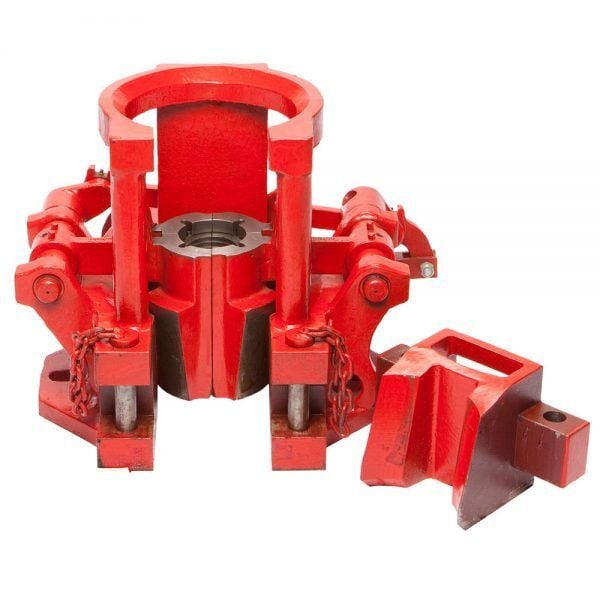

Model C
Item Code: 9067
Specifications
| Specifications | Model C |
|---|---|
| Slip Body Assembly, 3-1/2” Nom. Slip Insert Set, 3-1/2” Nom. | 1.315” (33.4 mm) 1.660” (42.1 mm) 1.900” (48.2 mm) 2.060” (52.3 mm) 2-3/8” (60.0 mm) 2-7/8” (73.0 mm) 3-1/8” (79.2 mm) 3-1/2” (89.0 mm) |
| Slip Body Assembly, 4-1/2” Nom. Slip Insert Set, 4-1/2” Nom. | 3-1/2” (88.9 mm) 4” (101.6 mm) 4-1/2” (114.3 mm) |
| Solid Slip Body Assembly | 4-3/4” (120.7 mm) 5” (127.0 mm) 5-1/2” (139.7 mm) |
WESTCO’s Model C features:
- Hydraulic or Pneumatic Operation
- 360° Inserts
- Removable Gate
- Single String Application
- Capacity – 165,000 lbs. (82.5 tons) 74,830 kg
- Estimated Weight – 408 lbs. (185.1 kg)
