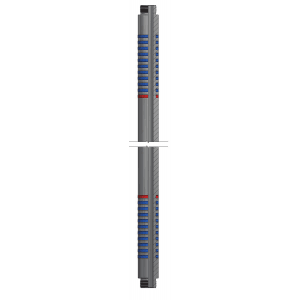

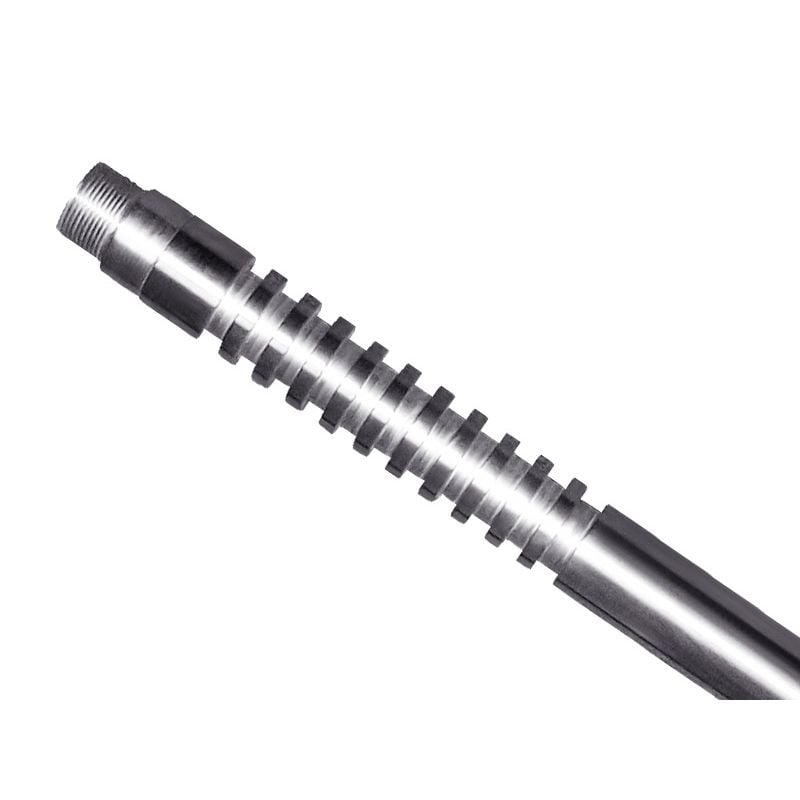

This plunger combines the benefits of a Pressure Activated plunger, the seal surface of a conventional spray metal plunger, and the additional solids moving capability of a frac sand plunger. It is recommended for moving any type of solids, including coal fines, formation sand, frac sand etc., particularly in high water cut wells where lubrication is a problem.
Features & Advantages
- Spray metal coated plunger protects against corrosion and wear
- Plunger has 0.005” ?t size to allow trash to pass by the plunger
- PA rings help to lift‚ sand, trash and scale through the barrel
- PolyPak rings provide excellent seal
Specifications
- Plunger is manufactured from 1026 Carbon Steel tubing material with 10 PA rings and 1 PolyPak per end
- Plunger is spray metal coated with Nickel or Tungsten Carbide
- Minimum thickness of spray metal is 0.010 in. per side
