The SPIRA™ PCP is a patented Even-wall Progressing Cavity Pump stator incorporating state-of-the-art Mechanical Bond technology.

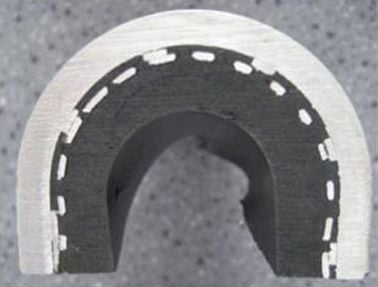

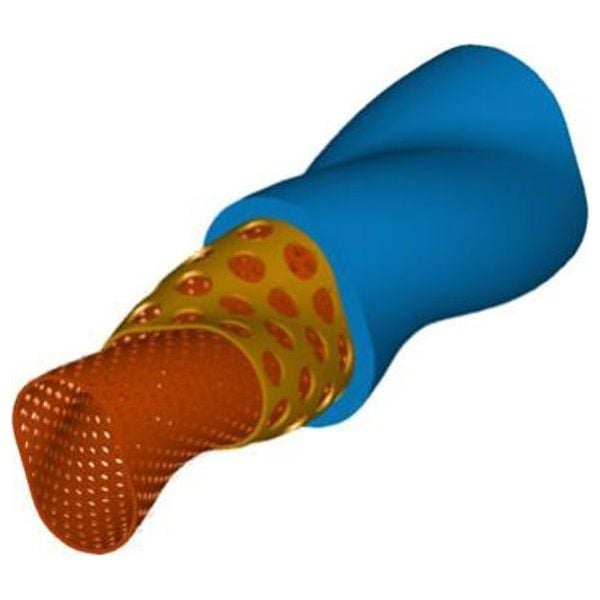

Utilizes traditional chemical bonding and metal “mesh” to create an incredibly robust bond between the stator tube and the elastomer, combined into an Even-Wall tube profile.
- Consistent elastomer thickness creates:
- Even swell on the Stator Major and Minor diameters
- Optimal uniform fit between the Rotor and Stator
- Reduction of hysteresis heat build up in the Stator Major diameter

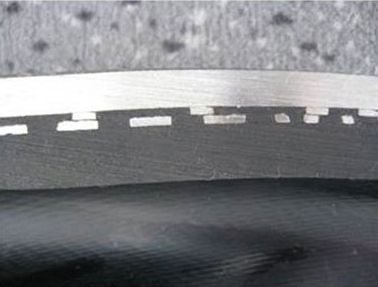

- The Mechanical Bond gives the stator an incredibly robust bond between the stator tube and the elastomer
- Significantly reduces debond failures in challenging applications
- Allows higher pressure per pump stage, effectively shortening the pump
Pump Model (m3/d/100 rpm) | 50 | 105 | 140 |
---|---|---|---|
Lift (m) | 1250 | 750 | 600 |
1500 | 900 | 900 | |
1750 | 1200 | 1200 | |
Stator Connection | 3-1/2 EUE 4-1/2 EUE | 3-1/2 EUE 4-1/2 EUE | 3-1/2 EUE 4-1/2 EUE |
Minimum Tubing Size | 2-7/8 EUE | 2-7/8 EUE | 2-7/8 EUE |
Rotor Connection | 1" API pin | 1" API pin | 1" API pin |
