Machine and Repair Capabilities

Machining

• Daewoo Puma 12 CNC Horizontal Turning Center with Fanuc series 15-T control, 12” 3-jaw hydraulic chuck, 10 station turret, tail stock, 22” swing & 40” center distance
• Okuma LH-55-N CNC Horizontal Turning Center with Fanuc series Oi-TB control, 24” 3-jaw hydraulic chuck, twin 8 station turrets, tail stock, turning capacity 43” swing & 120” center distance
• Daewoo Puma 700 CNC Horizontal Turning Center with Fanuc control, 24” 3-jaw hydraulic chuck, 12 station turret, tail stock, turning capacity 32” dia. X 60” center distance

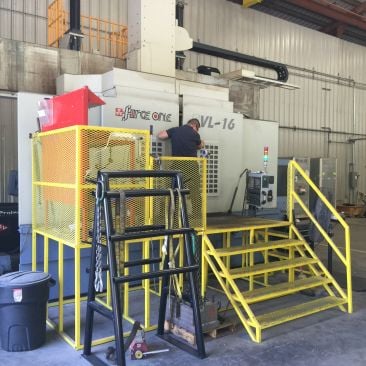

• Force One EVL-16 CNC Vertical Turning Lathe with Fanuc Oi-TD control, 63” 4-jaw chuck, automatic 12 tool changer for long boring bars, 78.74” swing & 63” under rail, 22,000 lb. table capacity
• G & L CNC Vertical Turning Lathe with Numeripath CNC 8000 control, 72” 4-jaw chuck, automatic tool changer, 96” under rail
• HAAS VF-5 CNC Vertical Machining Center with HAAS control, CAT 50 spindle, machine work envelope of 26” wide x 52” long x 25” high, 4,000 lb. table capacity
• HAAS EC-1600 CNC Horizontal Machining Center with HAAS control, CAT 50 spindle, machine work envelope of 50” wide x 64” long x 32” high,. 10,000 lb. table capacity

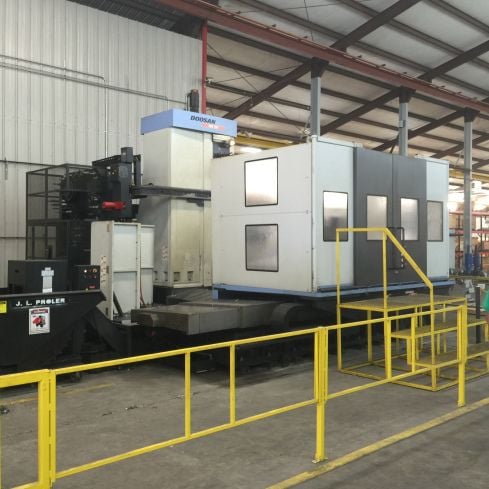

• Doosan DBC-130 CNC Horizontal Machining Center with Fanuc control, CAT 50 spindle, machine work envelope of 50” wide x 64” long x 32” high, 33,000 lb. table capacity
• Summit Engine Lathe with 15” 3-jaw chuck, taper attachment, 17” x 60” turning capacity
• Kingston Heavy Duty 30 Engine Lathe with 24” 4-jaw chuck, digital read out, 24” turning capacity & 80” center distance
• Vantage Heavy Duty Engine Lathe with 34” 4-jaw chuck, taper attachment, digital read out, 26” turning capacity & 120” center distance
• Ryzan Heavy Duty Engine Lathe with 39” 4-jaw chuck, digital read out, 31” turning capacity & 96” center distance

Welding

• Lincoln Model DC-400 welding machine, 400 Amp Arc with Lincoln Model LF-72 wire feeder
• Lincoln Model DC-600 welding machine, 400 Amp Arc with Lincoln Model LF-72 wire feeder
• Lincoln Model DC-655 welding machine, 400 Amp Arc with Lincoln Model LF-72 wire feeder
• Lincoln Model DC-1000 welding machine, 400 Amp Arc with Lincoln Model LF-72 wire feeder
• Ransom Model 66 Manipulator
• CWI Model 9X8 MBM Manipulator
• Weldwire Model WWM-99LD Manipulator
• Pandjiris Positioner with 20 inch diameter table.
• Vanguard Positioner with 30 inch diameter table
• Linde Positioner with 48 inch diameter table
• Ransome Positioner with 60 inch diameter table
• Worthington Positioner with 60 inch diameter table

Inspection

• FaroArm Platinum 3D portable CMM
• Inside Measuring to 40” Diameter & Outside Measuring to 42” Diameter
• Mic Trac MT-3000 Gagemaker
• Rockwell & Brinel Hardness Testers
