Diesel Power Model HPU-6914
Item Code: 9050
Dimensions
- Length: 96” (2438 mm)
- Width: 48” (1219 mm)
- Height: 56” (1422 mm)

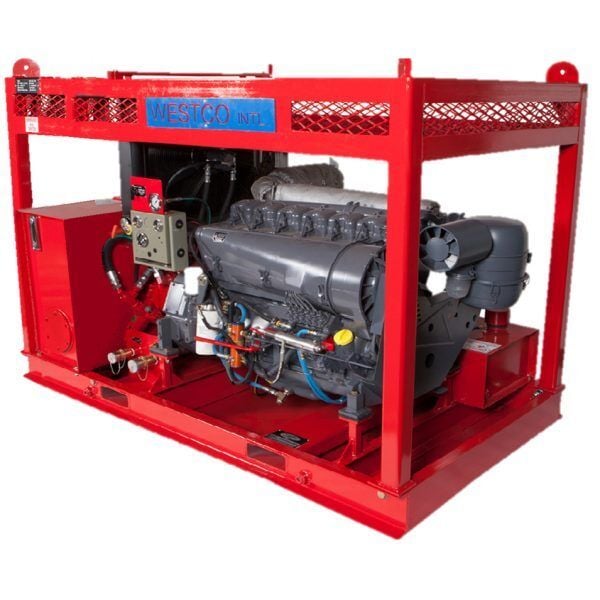

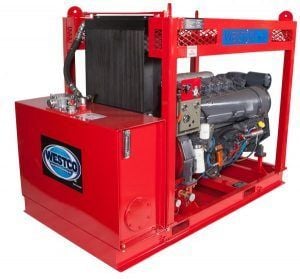

The WESTCO model 6914 diesel hydraulic power unit is designed exclusively for generating hydraulic power in order to drive tubing-, casing- and drill pipe tongs. The power unit is capable of generating pressure up to 200 Bar (2,900 PSI) at 110 liters (29 GPM) flow. Power is provided by a “DEUTZ” air cooled, six cylinder diesel engine, type F6L 914. At the designed operational speed of 2300 rpm max., the engine has a power output of 84 kW (113 hp). The engine is rigidly mounted on a skid.
