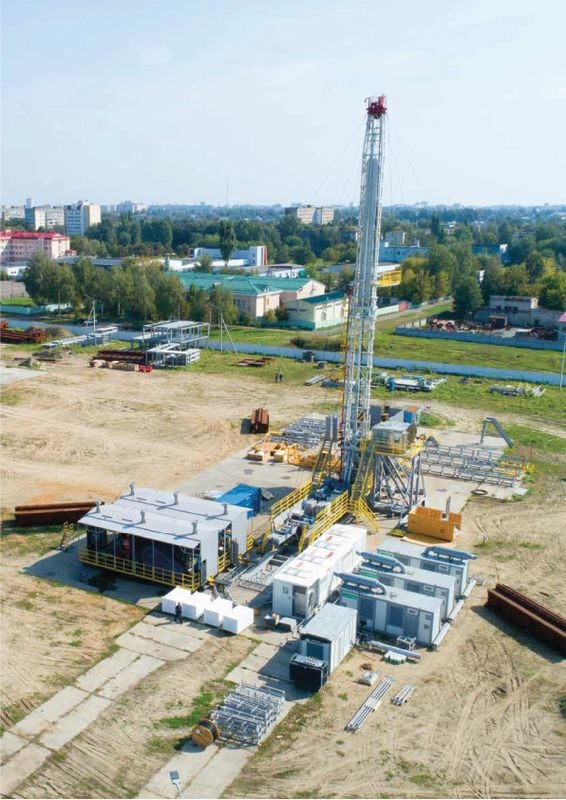

Drillmec MR-9000 | MR-10000
Item Code: MR-9000 | MR-10000
MR-9000 and MR-10000 are electric powered drilling rig suitable for oil & gas and geothermal exploration.
A dog house can be provided to accommodate the driller’s location and the main rig controls.
These rigs are ready for top drive installation, such as our electric top drive ETD 250. Various types of BOP handling systems enhance safety.
KEY POINTS:
- Static hook load of 113 metric tons (250,000 lbs) to 136 metric tons (300,000 lbs)
- The rear side is fitted with special outriggers meaning it requires no ramp, ground anchoring, t-base or concrete base
- The working floor is foldable to the side of the rig’s frame and adjustable in height
SPECIFICATIONS
| MR-9000 | MR-10000 | |
|---|---|---|
| Static Hook Load: | 226 m ton / 500,000 lbs | 250 m ton / 550,000 lbs |
| Number of lines: | 10 | 10 |
| Capacity: | Range 2 Double | Range 2 Double |
| Mast Clear Height: | 35m* / 115ft* | 40m* / 132ft* |
| Drawworks Power: | 805kW / 1080hp | 1200kW / 1609hp |
| Substructure Height: | 6.1m / 20ft | 6.6m / 21.65ft |
| Mounted On: | Semitrailer or Self propelled** | Semitrailer |
*from ground floor
**only diesel version
