Drillmec MR-5000 | MR-6000
Item Code: MR-5000 | MR-6000

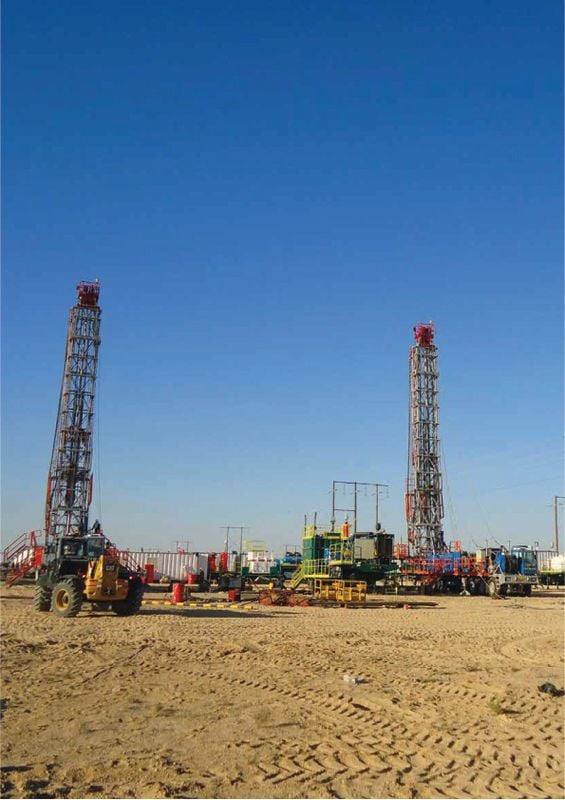

MR-5000 and MR-6000 are fast workover rigs.
Special outriggers are installed on rig’s rear side to which the mast guy lines are connected; therefore no ground anchoring, no ramp, no t-base or concrete works are necessary. All the rigs are designed for power swivel installation. The drawwork’s cooling system is located onboard whereas the swivel power unit can be provided upon request.
The rigs / hoists can be provided with a driller’s cabin with a folding arm that allows to keep it installed during the rig move.
KEY POINTS:
- Static hook load of 113 metric tons (250,000 lbs) to 136 metric tons (300,000 lbs)
- The rear side is fitted with special outriggers meaning it requires no ramp, ground anchoring, t-base or concrete base
- The working floor is foldable to the side of the rig’s frame and adjustable in height
SPECIFICATIONS
| MR-5000 | MR-6000 | |
|---|---|---|
| Static Hook Load: | 113 m ton / 250,000 lbs | 136 m ton / 300,000 lbs |
| Number of lines: | 8 | 8 |
| Capacity: | Range 2 Double | Range 2 Double |
| Mast Clear Height: | 35m* / 115ft* | 35m* / 115ft* |
| Drawworks Power: | 372kW / 500hp | 372kW / 500hp |
| Substructure Height: | 5.2m / 17ft | 5.2m / 17ft |
| Mounted On: | Semitrailer or Self propelled** | Semitrailer or Self propelled** |
*from ground floor
