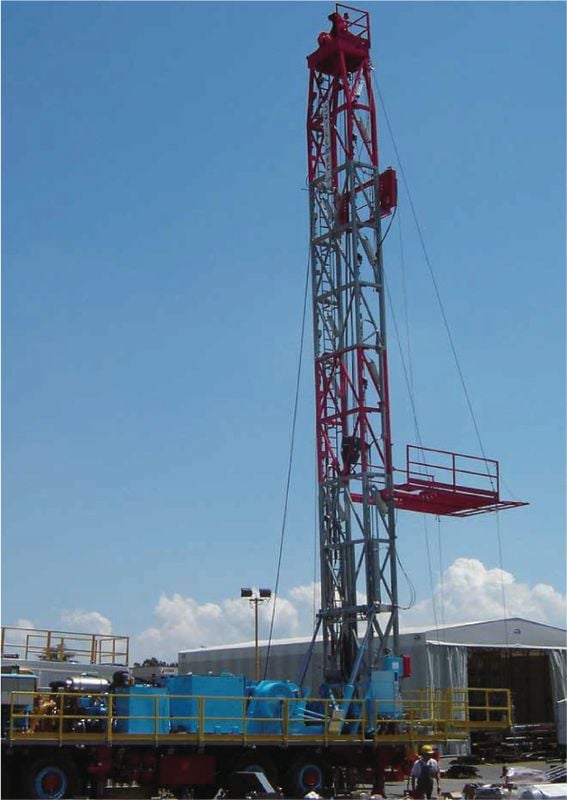

Drillmec MR-3500 | MR-4000
Item Code: MR-3500 | MR-4000
MR 3500 and MR 4000 are the fastest and the smallest rigs of mobile range.
These rigs are suitable for shallow wells drilling and workover operations.
Designed for rotary drilling with mud-direct circulation these rigs are installed on heavy duty oilfield semitrailer.
A truck mounted version can be supplied for easy transportation and compliance with local road rules.
The control panel is usually located on the mast side for simple and quick use.
KEY POINTS:
- Static hook load 60 metric tons of (132,000 lbs) to 81 metric tons (178,000 lbs)
- Suitable for -0°C +50°C ambient temperature range
- Pipe handling system can be integrated upon request
SPECIFICATIONS
| MR-3500 | MR-4000 | |
|---|---|---|
| Static Hook Load: | 60 m ton / 132,000 lbs | 81 m ton / 178,000 lbs |
| Number of lines: | 6 | 6 |
| Capacity: | Range 2 Double | Range 2 Double |
| Mast Clear Height: | 21.6m* / 71ft* | 33m* / 108ft* |
| Drawworks Power: | 186kW / 250hp | 223kW / 300hp |
| Substructure Height: | 3.7-4.5m / 12.1-14.7ft | |
| Mounted On: | Semitrailer | Self propelled |
