Drillmec HMDR-1000
Item Code: HMDR-1000

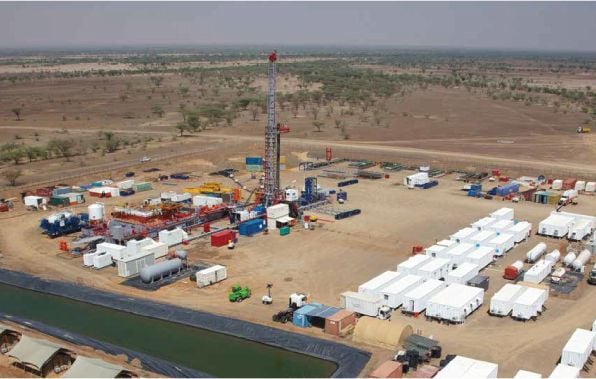

HMDR-1000 is a high mobile desert rig. In transport conditions, all the main components remain installed on the semitrailer in order to allow a single trip rig move.
The substructure is box on box connected to the rear side of the semitrailer which is equipped with twelve wheels per side. The rotary table and the drawwork are electrically driven, even if a gear driven drawwork can be supplied. An electric top drive can be supplied on request.
We manufacture HMDR 1000 up to 320 ton and 1500 hp, depending on customer requests.
KEY POINTS:
- Specialised mobile desert rig with 10 lines and static hook load of 250 metric tons (550,000 pounds)
- Main components remain on the semitrailer during transportation ensuring a single trip
- Workover equipment is electric driven
SPECIFICATIONS
| HMDR-1000 | |
|---|---|
| Static Hook Load: | 250 m ton / 550,000 lbs |
| Number of lines: | 10 |
| Capacity: | Range 2 Triple |
| Mast Clear Height: | 41*m / 137*ft |
| Drawworks Power: | 750kW / 1000hp |
| Substructure Height: | 7.5m / 24ft |
| Mounted On: | Semitrailer for desert |
*from ground floor
