Hercules Deadline Anchors
Thumbnail
Thumbnail

Hercules Deadline Anchors

Item Code: 8321
Full line of all-weather, quality-built deadline anchors pull capacities from 30,000 to 150,000 pounds

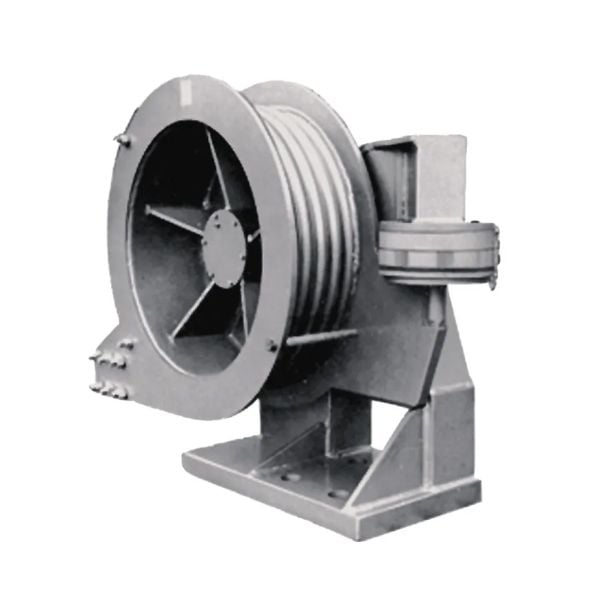

Constructed with top-quality steel and proof-tested to 150% of rated capacity, Hercules Deadline Anchors are highly accurate, super-strong anchors of exceptional reliability. Hercules Anchors are for use with Forum Weight Indicators and Load Sensors.

Full line of all-weather, quality-built deadline anchors pull capacities from 30,000 to 150,000 pounds
Constructed with top-quality steel and proof-tested to 150% of rated capacity, Hercules Deadline Anchors are highly accurate, super-strong anchors of exceptional reliability. Hercules Anchors are for use with Forum Weight Indicators and Load Sensors.

SG “Super Grip” series holds Plastic Filled Valley (PFV) wire rope securely.

– – – – –

To order specify:

  • Size of rig
  • Derrick capacity in pounds
  • Right or left hand model
  • Size of drilling wireline
  • Number of lines strung

Features

  • Left-hand models available
  • Models available to handle wireline sizes from 5/8″ to 2″
  • Deadline pull capacities from 30,000 to 150,000 pounds
  • Models available in a variety of sizes — from lightweight models for mounting on wheel- mounted rigs and on helicopter rigs — to models designed for 2-million-pound drilling masts
  • Super Grip (SG) Series Anchors tightly grip plastic-filled wire rope — as well as accommodating standard wire rope

Benefits

  • Center-point mounted drums ensure optimum accuracy
  • Smooth, machine-grooved drum surface extends cable life
  • Heavy-duty, high-grade structural steel construction with tapered roller anti-friction bearings and heat-treated alloy shaft provides a super strong anchor with exceptional durability
  • Proof-testing to 150% of rated capacity ensures superior reliability
  • Durable bronze wireline clamp inserts provide tight cable grip without damage to the line
  • Easy to install and service

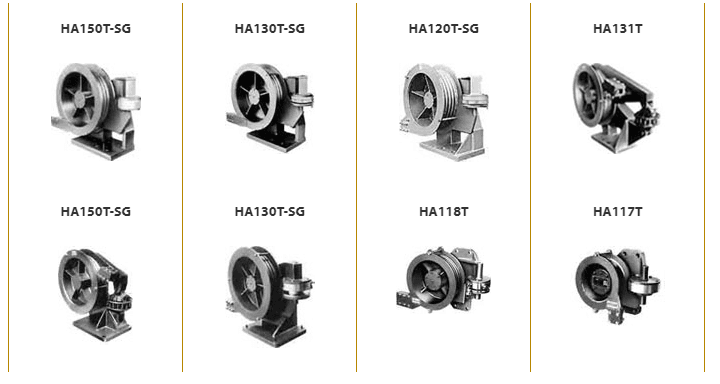

ModelLine Pull
Capacity
(pounds)
Load SensorWeight
Indicator
Model
Wirelines Sizes
(inches)
Drum
Diameter
(inches)
Weight
(pounds)
HA-150T-SG150,000E551 Compression1501 5/8 • 1 3/4 • 2383,300
HA-130T-SG130,000E551 Compression1251 1/2 • 1 5/8 • 1 3/4312,297
HA-120T-SG100,000E551 Compression75/1001 1/4 • 1 3/8 • 1 1/2 • 1 5/8281,675
HA131T100,000E80 Compression75/100(E) 1 1/4 • 1 3/8 • 1 1/2
(EB) 1 1/2 • 1 5/8
281,460
HA129T60,000E80 Compression501 • 1 1/8 • 1 1/424810
HA119T60,000E43 Compression501 • 1 1/8 • 1 1/424820
HA118T45,000E42 Compression407/8 • 1 • 1 1/8 • 1 1/416300
HA117T30,000E190Compression305/8 • 3/4 • 7/8 • 110150
