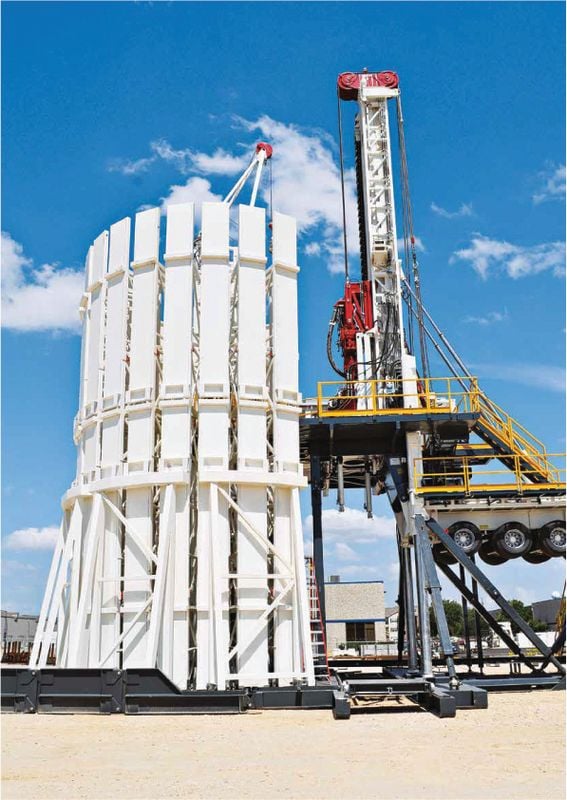

HH Series Automated Hydraulic Rigs
Drillmec’s hydraulic drilling rigs emerged from the need to meet the demands of today’s E&P companies that require a rig with high performance, lower NPT, lower operational cost, least environmental impact, and high safety.
Drillmec fused all these criteria in the HH Series rigs. This series of hydraulic drilling machines are specially designed for safety, efficiency, and speed as well. This is a masterpiece rig ready to deliver optimal results safely.
The HH Series began in 1993 as simple and regular hydraulic rigs for drilling water wells. It was then modified and improved to meet and surpass the demands of oil and gas drilling with the introduction of automation, transportation, pipe handling and self-elevating rig up system. Over the years, this hydraulic rig machine has worked effectively in difficult good conditions and extreme weather conditions around the world.
The HH Series is a hydraulic drilling machine that is designed for safety, high performance, reduced emissions, and speed with reduced non-productive time.
Key Features
- Advanced digitalisation
- Reduced footprint
- Fast moving
- Enhanced Performance
SPECIFICATIONS
| HH SERIES | HH 55 | HH 75 | HH 102 | HH 150 | HH 220 | HH 300 | HH 50 | |
|---|---|---|---|---|---|---|---|---|
| Input Power: | 328kw / 440hp | 403kw / 540hp | 429kw / 575hp | 720kw / 965hp | 1000kw / 1542hp | 1150kw / 1542hp | 1150kw / 1542hp | |
| Pull Up: | 55 m ton / 122,000 lbs | 75 m ton / 165,000 lbs | 100 m ton / 220,000 lbs | 150 m ton / 330,000 lbs | 200 m ton / 440,000 lbs | 272 m ton / 600,000 lbs | 317 m ton / 700,000 lbs | |
| Pull Down: | 10 m ton / 22,000 lbs | 10 m ton / 22,000 lbs | 20 m ton / 44,000 lbs | 20 m ton / 44,000 lbs | 20 m ton / 44,000 lbs | 30 m ton / 66,000 lbs | 30 m ton / 66,000 lbs | |
| Rated: | 55 m ton / 122,000 lbs | 75 m ton / 165,000 lbs | 100 m ton / 220,000 lbs | 136 m ton / 300,000 lbs | 200 m ton / 440,000 lbs | 272 m ton / 600,000 lbs | 317 m ton / 700,000 lbs | |
| Top Drive Torque | 13,560 Nm / 10,000 lbs*ft | 13,560 Nm / 10,000 lbs*ft | 32,300 Nm / 23,824 lbs*ft | 32,300 Nm / 23,824 lbs*ft | 35,840 Nm / 26,435 lbs*ft | 49,080 Nm / 36,200 lbs*ft | 52,230 Nm / 38,522 lbs*ft | |
| Top Drive Speed | 120 rpm / 698 mm | 120 rpm / 698 mm | 120 rpm / 698 mm | 120 rpm / 698 mm | 158 rpm / 698 mm | 158 rpm / 952.5 mm | 200 rpm / 952.5 mm | |
| Rotary Table | 698 mm / 27.5 in | 698 mm / 27.5 in | 698 mm / 27.5 in | 698 mm / 27.5 in | 698 mm / 27.5 in | 952.5 mm / 37.5 in | 952.5 mm / 37.5 in | |
| Vertical Pipe Rack Capacity | DP 3 1/2" | 102 m / 3360 ft | 1025 m / 3360 ft | 2900m / 3360 ft | 4600m / 15,000 ft | 4600m / 15,000 ft | 4624m / 15,170 ft | 4624m / 15,170 ft |
| DP 5" | 730 m / 2395 ft | 730 m / 2395 ft | 1800 m / 5900 ft | 3600 m / 11,800 ft | 3600 m / 11,800 ft | 3670 m / 12,040 ft | 3670 m / 12,040 ft | |
| DC | 110 m / 360 ft | 110 m / 360 ft | 110 m / 360 ft | 192 m / 630 ft | 192 m / 630 ft | 192 m / 630 ft | 192 m / 630 ft |
