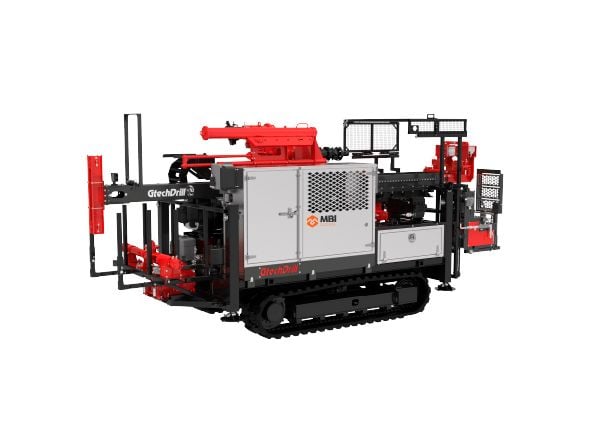

GT8 MAX - Gtechdrill - Geotechnical
Item Code: GT8 - MAX
Geotechnical Drill Rig. Compact and sturdy design to harness the power of a drilling rig in a multifunction drill.
FEATURES AND BENEFITS
- Best-in-class torque - Max. speed combo
- Best-in-class for depth in NWL core
- Reliable and simple components for affordable maintenance and continued operations under all conditions
- Truck unit under 26,000 lb available
SPECIFICATIONS
Max. torque: | 12,516 ft-lbs (4,173.05 kg) |
Max. rotation speed: | 851 rpm |
Push and pull capacity (standard mast) | 44,000 lbs (19,958 kg) |
Head sliding clearance | 16 in. (406mm) |
Front-rear slide mast | 10 in. (406mm) |
NWL diamond core drilling capacity | 1970ft (600m) with deep core winch option |
Performance may vary depending on the PTO configuration |
